Protection Range

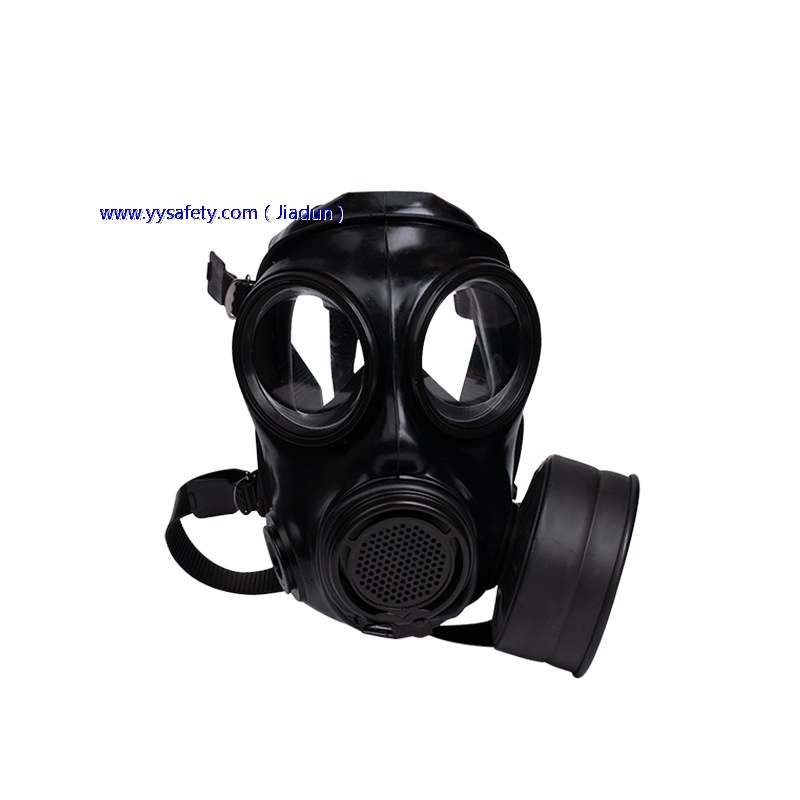

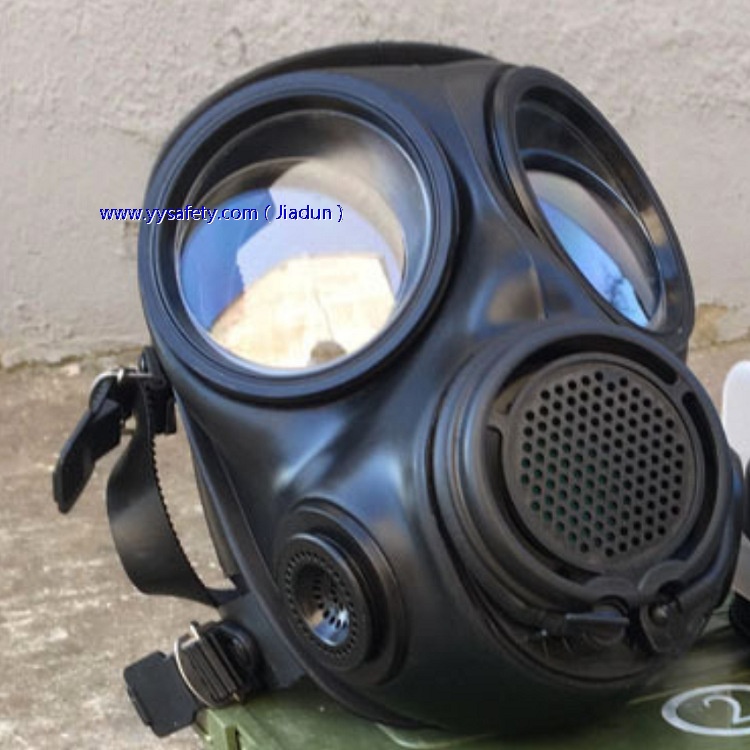

Full-face mask design covering the respiratory tract, eyes, and face, providing effective protection against chemical agents, radioactive dust, and aerosols (such as sarin, hydrogen chloride, etc.).

Smoke filtration efficiency ≥99%, protection against cyanogen chloride for ≥30 minutes (test conditions: 30 L/min flow rate, 4 mg/L concentration) 1.

Protection against sarin for up to 10 hours (80 L/min flow rate, 0.05 mg/L concentration) 23.

Core Parameters

Indicator    Value    Test Conditions

Inhalation Resistance    ≤186 Pa    30 L/min flow rate 1

Exhalation Resistance    ≤90 Pa    30 L/min flow rate 1

Total Field of View    ≥60%    Binocular field of view ≥15% 1

Weight    ≤1100 g (full set) Includes toxic gas filter canister 1

Materials and Processes

Hood material: Silicone (some early versions contain butyl rubber), non-toxic and resistant to aging, with folded edges and a sealed frame to enhance airtightness 16.

Lenses: Cylindrical optical plastic with a scratch-resistant coating, providing excellent light transmission 26.

Wearing Comfort

Headband-style 3D structure with 6 adjustable headbands to fit different head shapes, reducing pressure. 23.

Air Supply System: Standard configuration includes an air duct and blower (airflow 80 L/min), with active air supply reducing breathing resistance and extending usage time to ≥1 hour. 27.

Functional Components

Communication Device: Built-in exhalation valve ensures voice clarity; maintain valve seal integrity.

Toxic Gas Filter Canister: Filled with activated carbon-catalyst and high-efficiency filter paper, filters toxic gases and particles (except CO).

Drinking Device: Built-in drinking tube allows concealed drinking without removing the gas mask.

Application Areas

Military/Police: Military operations, counter-terrorism actions, civil defense emergency rescue.

Industrial Settings: Chemical industry, metallurgy, shipping, warehouse operations, and nuclear radiation environment protection.
